1.單槽圓管外徑尺寸 槽寬ⅹ槽深 壁厚
25.4mm 12×12mm 1.0~1.5mm
38.1mm 16×25.4mm 1.2mm
38.1mm 15×15mm 1.0~1.5mm
38.1mm 23.5×13mm 1.0~1.5mm
42.4mm 15×15mm 1.2~2.0
42.4mm 20×20mm 1.5mm
42.4mm 24×24mm 1.5mm
48.3mm 27×30mm 1.5mm
50.8mm 15×15mm 1.2﹏2.0mm
50.8mm 20×20mm 1.2﹏2.0mm
50.8mm 19×38.1mm 1.2mm
60mm 25×40mm 1.2*2.0
60.3mm 34×34mm 1.5mm
63.5mm 20×20mm 1.2﹏2.0mm
63mm 25×25mm 1.2~2.0mm
63.5mm 19×38.1mm 1.2mm
76.2mm 25×25mm 1.2﹏2.0mm
88.9mm 30×40mm 1.2﹏2.0mm

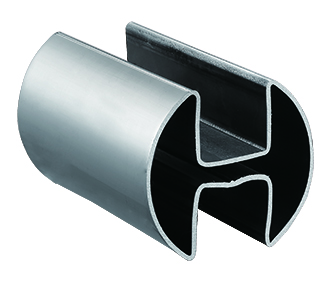

2.雙槽圓管外徑尺寸
50.8mm 15×15mm 1.2﹏1.5mm
76.2mm 25×25mm 1.5﹏2.0mm
3.單槽橢圓管外徑尺寸
60×30mm 15×20mm 1.2﹏2.0mm
80×40mm 24×24mm 1.2﹏2.0mm
80×40mm 25×25mm 1.2﹏2.0mm
80×37.7mm 33×26mm 1.5mm
87×65mm 24×28mm 1.2﹏2.0mm
100×50mm 30×30mm 1.2﹏2.0mm
100×50mm 25×30mm 1.2﹏2.0mm
110×40mm 33×26mm 1.2﹏2.0mm
110×40mm 24×24mm 1.2﹏2.0mm
4.單槽方管外徑尺寸
31.8×31.8mm 15×15mm 1.2﹏2.0mm
50×40mm 25×20mm 1.2﹏2.0mm
60×40mm 24×24mm 1.5mm
75×45mm 20×25mm 1.5~2.0mm
50×50mm 20×20mm 1.5~2.0mm
140×50mm 25×20mm 1.5~2.0mm
5.雙槽方管
40×40mm 15×15mm 1.2~2.0mm
40×40mm 20×20mm 1.2~2.0mm
